TUBE FITTINGS
Description
Trueway Tube Fittings are Double Ferrule compression type joints comprising of precision engineered components such as Body, Front Ferrule, Back Ferrule & Nut. They are used for achieving High-Pressure Leakproof Joints of Metal Tubing by swaging of Ferrules using a wrench or spanner, without welding. Complete range of Tube Fittings such as Connectors, Elbows, Tees, Adaptors, Cross etc are available in various sizes.
Our Tube Fittings are suitable for a wide range of applications, including High-Pressure Gases, Liquids, and Vacuum Systems. With a Double Ferrule design, they are ideal for even the most demanding conditions, such as Impulse, Vibration, High-Pressure Gases, and Vacuum.
We offer Tube Fittings in various material grades, including Stainless Steel, Hastelloy, Inconel, Monel, Brass, PTFE, Carbon Steel etc. ensuring compatibility with your specific requirements.
Special Features
Achieve High-Pressure Leakproof Joints without welding, using only a wrench or spanners.
Suitable for High-Pressure Gases, Liquids & Vacuum applications.
Double Ferrule design for stringent conditions like Impulse, Vibration, High-Pressure Gases, and Vacuum.
Silver Plating on Nuts to prevent galling, ensuring durability and reliability.
Explore our range of Tube Fittings, including SS Ferrule Fittings, SS Double Compression Tube Fittings, Instrument Tube Fittings, Instrument Pipe Fittings, Monel Tube Fittings, and Hastelloy Tube Fittings for precision and quality in your fluid and gas systems.

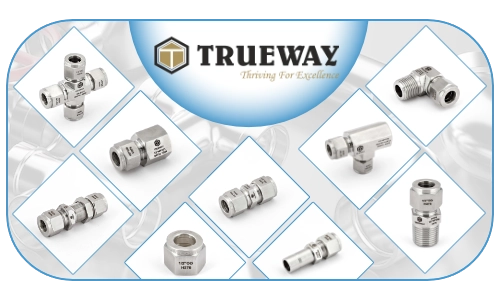

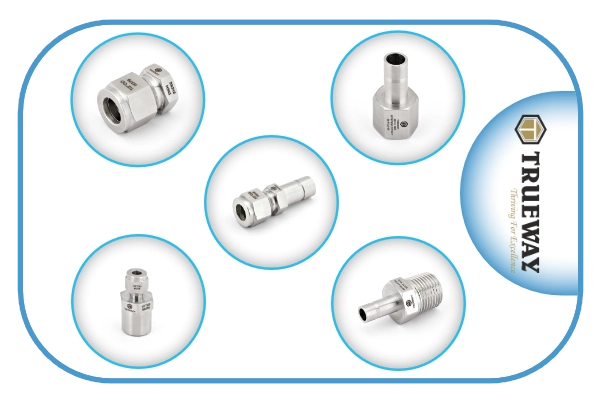

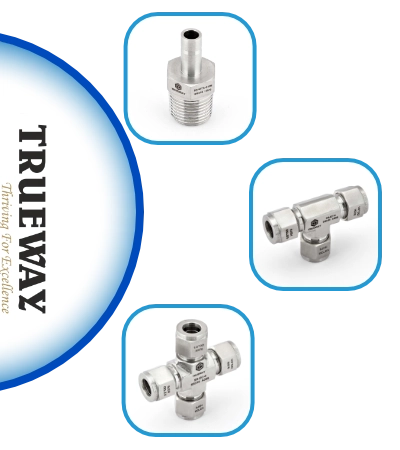

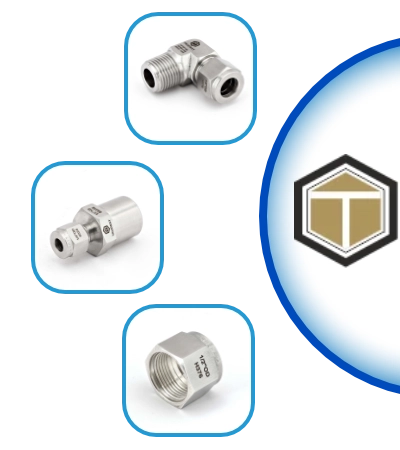

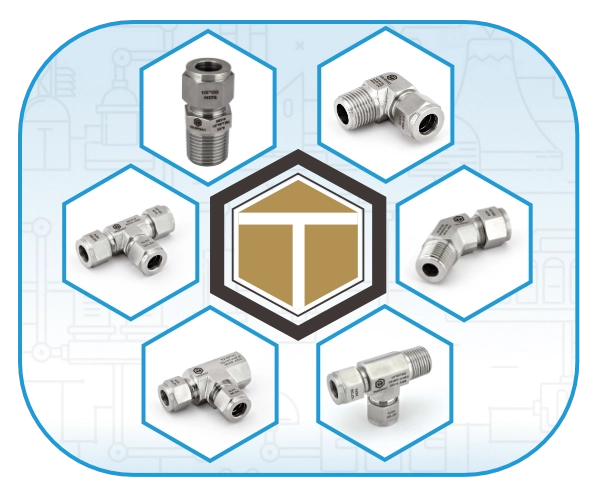

Range Of Tube Fittings
Male Connector (MC)
| End Connections | TOD x MPT |
|---|---|
| Tube OD Size (TOD) | From 1/16" OD to 2" OD (Fractional) From 3mm OD to 38mm OD (Metric) |
| Male Pipe Thread Size (MPT) | 1/8" to 2" NPT (Taper) Threads (BSPP/ BSPT/ ISO/ Metric or any other types upon request) |
| Female Pipe Thread Size (FPT) | |
| Pipe Butt Weld End Size (PBW) | |
| Tube Plain End Size (TPE) | |
| Type | Double ferrule design with nut (Single ferrule optional) |
| MOC | 55316, 304/ Brass/ Alloy 400, 600, C276/ CS/ PTFE etc |
| Model No Designator (*) | MOC-MC-TOD"-MPT" |
MALE ELBOW 90 DEG (ME)
| End Connections | TOD x MPT |
|---|---|
| Tube OD Size (TOD) | From 1/8” OD to 1.5” OD (Fractional) From 3mm OD to 38mm OD (Metric) |
| Male Pipe Thread Size (MPT) | 1/8” to 1.5” NPT (Taper) Threads (BSPP/ BSPT/ ISO/ Metric or any other types upon request) |
| Female Pipe Thread Size (FPT) | |
| Pipe Butt Weld End Size (PBW) | |
| Tube Plain End Size (TPE) | |
| Type | Double ferrule design with nut (Single ferrule optional) |
| MOC | SS316, 304/ Brass/ Alloy 400, 600, C276/ CS/ PTFE etc |
| Model No Designator (*) | MOC*-ME-TOD*-MPT* |
MALE ELBOW 45 DEG (ME45)
| End Connections | TOD x MPT |
|---|---|
| Tube OD Size (TOD) | From 1/8” OD to 1.25” OD (Fractional) From 3mm OD to 25mm OD (Metric) |
| Male Pipe Thread Size (MPT) | 1/8” to 1.25” NPT (Taper) Threads (BSPP/ BSPT/ ISO/ Metric or any other types upon request) |
| Female Pipe Thread Size (FPT) | |
| Pipe Butt Weld End Size (PBW) | |
| Tube Plain End Size (TPE) | |
| Type | Double ferrule design with nut (Single ferrule optional) |
| MOC | SS316, 304/ Brass/ Alloy 400, 600, C276/ CS/ PTFE etc |
| Model No Designator (*) | MOC*-ME45-TOD*-MPT* |
MALE RUN TEE (MRT)
| End Connections | TOD x MPT x TOD |
|---|---|
| Tube OD Size (TOD) | From 1/8” OD to 1.5” OD (Fractional) From 3mm OD to 38mm OD (Metric) |
| Male Pipe Thread Size (MPT) | 1/8” to 1.5” NPT (Taper) Threads (BSPP/ BSPT/ ISO/ Metric or any other types upon request) |
| Female Pipe Thread Size (FPT) | |
| Pipe Butt Weld End Size (PBW) | |
| Tube Plain End Size (TPE) | |
| Type | Double ferrule design with nut (Single ferrule optional) |
| MOC | SS316, 304/ Brass/ Alloy 400, 600, C276/ CS/ PTFE etc |
| Model No Designator (*) | MOC*-MRT- TOD1*-MPT*-TOD2* |
MALE BRANCH TEE (MBT)
| End Connections | TOD x TOD x MPT |
|---|---|
| Tube OD Size (TOD) | From 1/8” OD to 1.5” OD (Fractional) From 3mm OD to 38mm OD (Metric) |
| Male Pipe Thread Size (MPT) | 1/8” to 1.5” NPT (Taper) Threads (BSPP/ BSPT/ ISO/ Metric or any other types upon request) |
| Female Pipe Thread Size (FPT) | |
| Pipe Butt Weld End Size (PBW) | |
| Tube Plain End Size (TPE) | |
| Type | Double ferrule design with nut (Single ferrule optional) |
| MOC | SS316, 304/ Brass/ Alloy 400, 600, C276/ CS/ PTFE etc |
| Model No Designator (*) | MOC*-MBT- TOD1*-TOD2*-MPT* |
MALE BULKHEAD CONNECTOR (MBH)
| End Connections | TOD x MPT |
|---|---|
| Tube OD Size (TOD) | From 1/8” OD to 2” OD (Fractional) From 3mm OD to 38mm OD (Metric) |
| Male Pipe Thread Size (MPT) | 1/8” to 2” NPT (Taper) Threads (BSPP/ BSPT/ ISO/ Metric or any other types upon request) |
| Female Pipe Thread Size (FPT) | |
| Pipe Butt Weld End Size (PBW) | |
| Tube Plain End Size (TPE) | |
| Type | Double ferrule design with nut (Single ferrule optional) |
| MOC | SS316, 304/ Brass/ Alloy 400, 600, C276/ CS/ PTFE etc |
| Model No Designator (*) | MOC*-MBH-TOD*-MPT* |
MALE TUBE ADAPTOR (MTA)
| End Connections | MPT x TPE |
|---|---|
| Tube OD Size (TOD) | 1/8” to 2” NPT (Taper) Threads (BSPP/ BSPT/ ISO/ Metric or any other Types Upon Request) |
| Male Pipe Thread Size (MPT) | From 1/8” OD to 2” OD (Fractional) From 3mm OD to 38mm OD (Metric) |
| Female Pipe Thread Size (FPT) | |
| Pipe Butt Weld End Size (PBW) | |
| Tube Plain End Size (TPE) | |
| Type | Tube plain end suitable for swaging ferrules |
| MOC | SS316, 304/ Brass/ Alloy 400, 600, C276/ CS/ PTFE etc |
| Model No Designator (*) | MOC*-MTA-MPT*-TPE* |
FEMALE CONNECTOR (FC)
| End Connections | TOD x FPT |
|---|---|
| Tube OD Size (TOD) | From 1/16” OD to 2” OD (Fractional) From 3mm OD to 38mm OD (Metric) |
| Male Pipe Thread Size (MPT) | |
| Female Pipe Thread Size (FPT) | 1/8 ” to 1.5” NPT (Taper) Threads (BSPP/ BSPT/ ISO/ Metric or any other types upon request) |
| Pipe Butt Weld End Size (PBW) | |
| Tube Plain End Size (TPE) | |
| Type | Double ferrule design with nut (Single ferrule optional) |
| MOC | SS316, 304/ Brass/ Alloy 400, 600, C276/ CS/ PTFE etc |
| Model No Designator (*) | MOC*-FC-TOD*-FPT* |
FEMALE ELBOW 90 DEG (FE)
| End Connections | TOD x FPT |
|---|---|
| Tube OD Size (TOD) | From 1/8” OD to 1.5” OD (Fractional) From 3mm OD to 38mm OD (Metric) |
| Male Pipe Thread Size (MPT) | |
| Female Pipe Thread Size (FPT) | 1/8” to 1.5” NPT (Taper) Threads (BSPP/ BSPT/ ISO/ Metric or any other types upon request) |
| Pipe Butt Weld End Size (PBW) | |
| Tube Plain End Size (TPE) | |
| Type | Double ferrule design with nut (Single ferrule optional) |
| MOC | SS316, 304/ Brass/ Alloy 400, 600, C276/ CS/ PTFE etc |
| Model No Designator (*) | MOC*-FE-TOD*-FPT* |
FEMALE RUN TEE (FRT)
| End Connections | TOD x FPT x TOD |
|---|---|
| Tube OD Size (TOD) | From 1/8” OD to 2” OD (Fractional) From 3mm OD to 48mm OD (Metric) |
| Male Pipe Thread Size (MPT) | |
| Female Pipe Thread Size (FPT) | 1/8” to 1.5” NPT (Taper) Threads (BSPP/ BSPT/ ISO/ Metric or any other types upon request) |
| Pipe Butt Weld End Size (PBW) | |
| Tube Plain End Size (TPE) | |
| Type | Double ferrule design with nut (Single ferrule optional) |
| MOC | SS316, 304/ Brass/ Alloy 400, 600, C276/ CS/ PTFE etc |
| Model No Designator (*) | MOC*-FRT-TOD1*-FPT*-TOD2* |
FEMALE BRANCH TEE (FBT)
| End Connections | TOD x TOD x FPT |
|---|---|
| Tube OD Size (TOD) | From 1/8” OD to 1.5” OD (Fractional) From 3mm OD to 38mm OD (Metric) |
| Male Pipe Thread Size (MPT) | |
| Female Pipe Thread Size (FPT) | 1/8” to 1.5” NPT (Taper) Threads (BSPP/ BSPT/ ISO/ Metric or any other types upon request) |
| Pipe Butt Weld End Size (PBW) | |
| Tube Plain End Size (TPE) | |
| Type | Double ferrule design with nut (Single ferrule optional) |
| MOC | SS316, 304/ Brass/ Alloy 400, 600, C276/ CS/ PTFE etc |
| Model No Designator (*) | MOC*-FBT-TOD1*-TOD2*-FPT* |
FEMALE BULKHEAD CONNECTOR (FBH)
| End Connections | TOD x FPT |
|---|---|
| Tube OD Size (TOD) | From 1/8” OD to 1.5” OD (Fractional) From 3mm OD to 38mm OD (Metric) |
| Male Pipe Thread Size (MPT) | |
| Female Pipe Thread Size (FPT) | 1/8” to 1.5” NPT (Taper) Threads (BSPP/ BSPT/ ISO/ Metric or any other types upon request) |
| Pipe Butt Weld End Size (PBW) | |
| Tube Plain End Size (TPE) | |
| Type | Double ferrule design with nut (Single ferrule optional) |
| MOC | SS316, 304/ Brass/ Alloy 400, 600, C276/ CS/ PTFE etc |
| Model No Designator (*) | MOC*-FBH-TOD*-FPT* |
FEMALE TUBE ADAPTOR (FTA)
| End Connections | FPT x TPE |
|---|---|
| Tube OD Size (TOD) | 1/8” to 2” NPT (Taper) Threads (BSPP/ BSPT/ ISO/ Metric or any other types upon request) |
| Male Pipe Thread Size (MPT) | |
| Female Pipe Thread Size (FPT) | From 1/16” OD to 2” OD (Fractional) From 3mm OD to 38mm OD (Metric) |
| Pipe Butt Weld End Size (PBW) | |
| Tube Plain End Size (TPE) | |
| Type | Tube plain end suitable for swaging ferrules |
| MOC | SS316, 304/ Brass/ Alloy 400, 600, C276/ CS/ PTFE etc |
| Model No Designator (*) | MOC*-FTA-FPT*-TPE* |
UNION TUBE STRAIGHT (U)
| End Connections | TOD x TOD |
|---|---|
| Tube OD Size (TOD) | From 1/16” OD to 2” OD (Fractional) From 3mm OD to 38mm OD (Metric) |
| REDUCING UNION OF ALL COMBINATION AVAILABLE | |
| Male Pipe Thread Size (MPT) | |
| Female Pipe Thread Size (FPT) | |
| Pipe Butt Weld End Size (PBW) | |
| Tube Plain End Size (TPE) | |
| Type | Double ferrule design with nut (Single ferrule optional) |
| MOC | SS316, 304/ Brass/ Alloy 400, 600, C276/ CS/ PTFE etc |
| Model No Designator (*) | MOC*-U-TOD1*-TOD2* |
ELOBW UNION 90 DEG (EU)
| End Connections | TOD x TOD |
|---|---|
| Tube OD Size (TOD) | From 1/8” OD to 2” OD (Fractional) From 3mm OD to 38mm OD (Metric) |
| REDUCING ELBOW OF ALL COMBINATION AVAILABLE | |
| Male Pipe Thread Size (MPT) | |
| Female Pipe Thread Size (FPT) | |
| Pipe Butt Weld End Size (PBW) | |
| Tube Plain End Size (TPE) | |
| Type | Double ferrule design with nut (Single ferrule optional) |
| MOC | SS316, 304/ Brass/ Alloy 400, 600, C276/ CS/ PTFE etc |
| Model No Designator (*) | MOC*-EU-TOD1*-TOD2* |
TEE UNION (TU)
| End Connections | TOD x TOD |
|---|---|
| Tube OD Size (TOD) | From 1/8” OD to 2” OD (Fractional) From 3mm OD to 38mm OD (Metric) |
| REDUCING TEE OF ALL COMBINATION AVAILABLE | |
| Male Pipe Thread Size (MPT) | |
| Female Pipe Thread Size (FPT) | |
| Pipe Butt Weld End Size (PBW) | |
| Tube Plain End Size (TPE) | |
| Type | Double ferrule design with nut (Single ferrule optional) |
| MOC | SS316, 304/ Brass/ Alloy 400, 600, C276/ CS/ PTFE etc |
| Model No Designator (*) | MOC*-TU-TOD1*-TOD2*-TOD3* |
CROSS UNION (CU)
| End Connections | TOD x TOD |
|---|---|
| Tube OD Size (TOD) | From 1/8” OD to 2” OD (Fractional) From 3mm OD to 38mm OD (Metric) |
| REDUCING CROSS OF ALL COMBINATION AVAILABLE | |
| Male Pipe Thread Size (MPT) | |
| Female Pipe Thread Size (FPT) | |
| Pipe Butt Weld End Size (PBW) | |
| Tube Plain End Size (TPE) | |
| Type | Double ferrule design with nut (Single ferrule optional) |
| MOC | SS316, 304/ Brass/ Alloy 400, 600, C276/ CS/ PTFE etc |
| Model No Designator (*) | MOC*-TU-TOD1*-TOD2*-TOD3*-TOD4* |
BULK HEAD UNION TUBE (BHU)
| End Connections | TOD x TOD |
|---|---|
| Tube OD Size (TOD) | From 1/8” OD to 2” OD (Fractional) From 3mm OD to 38mm OD (Metric) |
| REDUCING UNION OF ALL COMBINATION AVAILABLE | |
| Male Pipe Thread Size (MPT) | |
| Female Pipe Thread Size (FPT) | |
| Pipe Butt Weld End Size (PBW) | |
| Tube Plain End Size (TPE) | |
| Type | Double ferrule design with nut (Single ferrule optional) |
| MOC | SS316, 304/ Brass/ Alloy 400, 600, C276/ CS/ PTFE etc |
| Model No Designator (*) | MOC*-BHU-TOD1*-TOD2* |
REDUCER TUBE (RT)
| End Connections | TOD x TPE |
|---|---|
| Tube OD Size (TOD) | From 1/8” OD to 2” OD (Fractional) From 3mm OD to 48mm OD (Metric) |
| Male Pipe Thread Size (MPT) | |
| Female Pipe Thread Size (FPT) | |
| Pipe Butt Weld End Size (PBW) | |
| Tube Plain End Size (TPE) | From 1/8” OD to 2” OD (Fractional) From 3mm OD to 38mm OD (Metric) |
| Type | Tube plain end suitable for swaging ferrules |
| MOC | SS316, 304/ Brass/ Alloy 400, 600, C276/ CS/ PTFE etc |
| Model No Designator (*) | MOC*-RT-TOD*-TPE* |
PIPE BUTT WELD CONNECTOR (PBWC)
| End Connections | TOD x PBW |
|---|---|
| Tube OD Size (TOD) | From 1/8” OD to 2” OD (Fractional) From 3mm OD to 38mm OD (Metric) |
| Male Pipe Thread Size (MPT) | |
| Female Pipe Thread Size (FPT) | |
| Pipe Butt Weld End Size (PBW) | From 1/8” NB to 1.5” NB |
| Tube Plain End Size (TPE) | |
| Type | Double ferrule design with nut (Single ferrule optional) |
| MOC | SS316, 304/ Alloy 400, 600, C276/ CS etc |
| Model No Designator (*) | MOC*-PBWC-TOD*-PBW* |
END CLOSURE FOR TUBE (ECT)
| End Connections | TOD |
|---|---|
| Tube OD Size (TOD) | From 1/8” OD to 2” OD (Fractional) From 3mm OD to 38mm OD (Metric) |
| Male Pipe Thread Size (MPT) | |
| Female Pipe Thread Size (FPT) | |
| Pipe Butt Weld End Size (PBW) | |
| Tube Plain End Size (TPE) | |
| Type | Double ferrule design with nut (Single ferrule optional) |
| MOC | SS316, 304/ Brass/ Alloy 400, 600, C276/ CS/ PTFE etc |
| Model No Designator (*) | MOC*-ET-TOD* |
END CLOSURE FOR FITTING (ECF)
| End Connections | TOD |
|---|---|
| Tube OD Size (TOD) | From 1/8” OD to 2” OD (Fractional) From 3mm OD to 38mm OD (Metric) |
| Male Pipe Thread Size (MPT) | |
| Female Pipe Thread Size (FPT) | |
| Pipe Butt Weld End Size (PBW) | |
| Tube Plain End Size (TPE) | |
| Type | Double ferrule design with nut (Single ferrule optional) |
| MOC | SS316, 304/ Brass/ Alloy 400, 600, C276/ CS/ PTFE etc |
| Model No Designator (*) | MOC*-EF-TOD* |
SPARE NUT (SN)
| End Connections | TOD |
|---|---|
| Tube OD Size (TOD) | From 1/16” OD to 2” OD (Fractional) From 3mm OD to 38mm OD (Metric) |
| Male Pipe Thread Size (MPT) | |
| Female Pipe Thread Size (FPT) | |
| Pipe Butt Weld End Size (PBW) | |
| Tube Plain End Size (TPE) | |
| Type | Double ferrule design with nut (Single ferrule optional) |
| MOC | SS316, 304/ Brass/ Alloy 400, 600, C276/ CS/ PTFE etc |
| Model No Designator (*) | MOC*-SN-TOD* |
SPARE FERRULE SET (SF)
| End Connections | TOD |
|---|---|
| Tube OD Size (TOD) | From 1/16” OD to 2” OD (Fractional) From 3mm OD to 38mm OD (Metric) |
| Male Pipe Thread Size (MPT) | |
| Female Pipe Thread Size (FPT) | |
| Pipe Butt Weld End Size (PBW) | |
| Tube Plain End Size (TPE) | |
| Type | Spare double ferrule set (Single ferrule optional) |
| MOC | SS316, 304/ Brass/ Alloy 400, 600, C276/ CS/ PTFE etc |
| Model No Designator (*) | MOC*-SF-TOD* |
ADDITIONAL PRODUCT RANGE:
- PRODUCTS COMPLYING NACE SPECIFICATION
- ALL PRODUCTS IN MOC SS316L $ SS304L
- BORE THROUGH/ THERMCOUPLE CONNECTORS
- PORT CONNECTORS
- O-RING SEAL CONNECTORS
- PIPE/TUBE SOCKET WELD CONNECTORS
- GAP INSPECTION GAUGES
FAQs:
Tube fittings are crucial components used in various industries to connect and secure tubing within fluid and gas systems. They ensure a reliable and leak-free connection between pipes or tubes. These fittings come in different shapes and sizes, tailored to match specific tubing materials, sizes, and applications. They are essential for maintaining fluid or gas flow while preventing potential leaks that could compromise safety and efficiency.
Trueway India is widely recognized as one of India's top tube fittings manufacturers. They have built a strong reputation by consistently delivering high-quality tube fittings that meet industry standards. Trueway India's offerings include a comprehensive range of tube fittings, including stainless steel, copper, Monel, and Hastelloy variants, known for their durability and resistance to corrosion.
Instrumentation tube fittings are specialized components used in precision instrumentation and control systems. Trueway India specializes in manufacturing these fittings, ensuring precision engineering and strict adherence to quality standards. Instrumentation tube fittings are vital in industries where precision is critical, such as pharmaceuticals and aerospace.
India offers a diverse range of stainless steel tube fittings, with Trueway India being a prominent supplier. Stainless steel tube fittings are favored for their corrosion resistance, making them ideal for harsh environments. Trueway India's stainless steel fittings come in various types, including compression fittings, ferrule fittings, and double compression fittings, suited for various applications.
Trueway India stands out as a key manufacturer of tube fittings in India. They are known for their commitment to quality, a wide product range, and excellent customer service. Trueway India offers tube fittings in various materials to cater to different industry needs.
Stainless Steel (SS) Ferrule Fittings are precision-engineered fittings designed for secure and leak-proof tubing connections. Trueway India offers a comprehensive selection of SS Ferrule Fittings in various sizes and configurations. These fittings are especially popular in industries like food and beverage and pharmaceuticals, where hygiene is crucial.
SS Double Compression Tube Fittings are advanced fittings with two ferrules to provide an extra layer of sealing and security, making them ideal for high-risk environments. Trueway India offers a range of these fittings, engineered to prevent leakage under extreme conditions, making them suitable for critical applications.
Yes, Trueway India offers specialized tube fittings made from materials such as Monel and Hastelloy. These materials are renowned for their corrosion resistance and durability in challenging environments, making them ideal for industries like offshore drilling and chemical processing. Trueway India ensures the highest quality standards for their Monel and Hastelloy tube fittings, guaranteeing reliable performance even in the harshest conditions.
Industries
Instrumentation
Chemicals
Oil & Gas
Hydraulics
Power
Steel
Fertilizers
Petrochemicals
Pharmaceuticals
