Trueway India: Instrumentation Valves and Fittings Manufacturers in India
Trueway India is a leading Instrumentation Valves & Fitting Manufacturers with a Client Base that Includes Top-notch Names
Trueway does not just manufacture valves and fittings but engineers everything with reliability. We have a hands-on experience in manufacturing valves made for accurate control. They can handle everything from low to high pressure. These valves are available in different sizes and types like Ball Valves, Needle Valves, Non-Return (Check) Valves, Gauge Cocks, Snubbers, and more. Headquartered in Mumbai, our facility is driven by high-quality material, impressive craftsmanship; we remain committed to performance that has stood and will stand the test of time, pressure and purpose.
Being one of the trusted instrumentation valves manufacturers, we use a variety of strong and reliable materials to manufacture valves to make them suitable to different uses. You can choose from Stainless Steel, Monel, Inconel, Hastelloy, PTFE, etc. There are other materials such as Brass, Carbon Steel, etc. to be considered; they ensure long life and dependable performance.
Why Choose Trueway India as Your Instrumentation Valves & Fittings Supplier?
Well, every critical operation depends on flow control. This makes precision an absolutely non-negotiable thing. Here is why industries across India trust us as their instrumentation valves & fittings supplier:
Factory-tested assurance, always
Every valve is put through some rigorous tests. So, you get 100% factory-tested assurance – the one you deserve.
Matching your processing needs
Trueway uses materials which can match your exact process needs. It can include anything from SS to Inconel and Hastelloy, etc.
Customizable engineering
The team Trueway knows how to engineer every valve to fit your requirements. Experience our customizable capability.
Certified quality
We are certified to MSS-SP-99-2016A. Our products and solutions work efficiently in critical environments.
Comprehensive solution for precision valves
We flourish as a one-stop solution for all your requirements – Needle Valves, Ball Valves, Snubbers, Gauge Cocks and more.

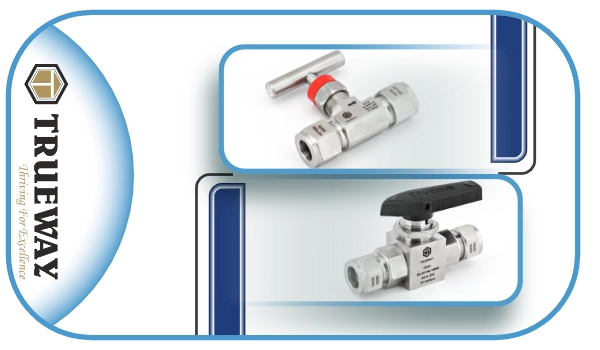

What are Instrumentation Valves?
Instrumentation valves are components manufactured to very high standards of tolerance as well as accuracy. They regulate, isolate, direct and measure the gases or liquids flow in process system. Often industries where safety and accuracy have no substitute, like chemicals, petrochemicals, fertilizer, pharmaceuticals, steel and power plants, these valves are critical assets. Choose us as your instrumentation valves & fittings company in India.
Types of Instrumentation Valves and Fittings by Valves Fittings manufacturers Suppliers
NEEDLE VALVE (NV)
| End Connections | MPT/ FPT |
|---|---|
| Tube OD Size (TOD) | |
| Pipe Thread Size (MPT/ FPT) | 1/8” to 2” NPT (Taper) Threads (BSPP/ BSPT/ ISO/ Metric or any other types upon request) |
| Needle Valve with Panel Mounting Arrangement on Request | |
| Locking Arrangement | |
| Packing | |
| Test Pressure | Up to 10000 psi |
| Seal Ring | |
| Gland Packing | Standard PTFE (Grafoil for high temp) |
| Type | |
| Male End Conn | |
| Female Swivel Conn | |
| MOC | SS316, 304/ Brass/ Alloy 400, 600, C276/ CS/ PTFE etc |
| Model No Designator (*) | MOC*-NV-IN*-OUT* |
NEEDLE VALVE TUBE (NV)
| End Connections | MPT/ FPT |
|---|---|
| Tube OD Size (TOD) | |
| Pipe Thread Size (MPT/ FPT) | 1/8” to 2” NPT (Taper) Threads (BSPP/ BSPT/ ISO/ Metric or any other types upon request) |
| Needle Valve with Panel Mounting Arrangement on Request | |
| Locking Arrangement | |
| Packing | |
| Test Pressure | Up to 10000 psi |
| Seal Ring | |
| Gland Packing | Standard PTFE (Grafoil for high temp) |
| Type | |
| Male End Conn | |
| Female Swivel Conn | |
| MOC | SS316, 304/ Brass/ Alloy 400, 600, C276/ CS/ PTFE etc |
| Model No Designator (*) | MOC*-NV-IN*-OUT* |
NEEDLE VALVE ANGLE (NVA)
| End Connections | TOD/ FPT/ MPT |
|---|---|
| Tube OD Size (TOD) | From 1/8” OD to 2” OD (Fractional)From 3mm OD to 38mm OD (Metric) |
| Pipe Thread Size (MPT/ FPT) | 1/8” to 2” NPT (Taper) Threads (BSPP/ BSPT/ ISO/ Metric or any other types upon request) |
| Locking Arrangement | |
| Packing | |
| Test Pressure | Up to 10000 psi |
| Seal Ring | |
| Gland Packing | Standard PTFE (Grafoil for high temp) |
| Type | |
| Male End Conn | |
| Female Swivel Conn | |
| MOC | SS316, 304/ Brass/ Alloy 400, 600, C276/ CS etc |
| Model No Designator (*) | MOC*-NVA-IN*-OUT* |
NEEDLE VALVE WITH DRAIN (NVD)
| End Connections | TOD/ FPT/ MPT |
|---|---|
| Tube OD Size (TOD) | From 1/8” OD to 2” OD (Fractional) From 3mm OD to 38mm OD (Metric) |
| Pipe Thread Size (MPT/ FPT) | 1/8” to 2” NPT (Taper) Threads (BSPP/ BSPT/ ISO/ Metric or any other types upon request) |
| Locking Arrangement | |
| Packing | |
| Test Pressure | Up to 10000 psi |
| Seal Ring | |
| Gland Packing | Standard PTFE (Grafoil for high temp) |
| Type | |
| Male End Conn | |
| Female Swivel Conn | |
| MOC | SS316, 304/ Brass/ Alloy 400, 600, C276/ CS/ PTFE etc |
| Model No Designator (*) | MOC*-NVD-IN*-OUT*-DRAIN* |
NEEDLE VALVE LOCKABLE (NVL)
| End Connections | TOD/ FPT/ MPT |
|---|---|
| Tube OD Size (TOD) | From 1/8” OD to 1” OD (Fractional) From 3mm OD to 25mm OD (Metric) |
| Pipe Thread Size (MPT/ FPT) | |
| LOCKABLE TO ATTAIN CONSTANT FLOW OUTPUT | |
| Locking Arrangement | By Allen Screw |
| Packing | PTFE |
| Test Pressure | Up to 10000 psi |
| Seal Ring | |
| Gland Packing | |
| Type | |
| Male End Conn | |
| Female Swivel Conn | |
| MOC | SS316, 304/ Brass/ Alloy 400, 600, C276/ CS etc |
| Model No Designator (*) | MOC*-NVL-IN*-OUT* |
BALL VALVE (BV)
| End Connections | TOD/ FPT/ MPT |
|---|---|
| Tube OD Size (TOD) | From 1/4” OD to 1” OD (Fractional) From 6mm OD to 25mm OD (Metric) |
| Pipe Thread Size (MPT/ FPT) | 1/8” to 2” NPT (Taper) Threads (BSPP/ BSPT/ ISO/ Metric or any other types upon request) |
| Locking Arrangement | |
| Packing | PTFE |
| Test Pressure | Up to 2000 psi. |
| Seal Ring | |
| Gland Packing | |
| Type | |
| Male End Conn | |
| Female Swivel Conn | |
| MOC | SS316, 304/ Brass/ Alloy 400, 600, C276/ CS etc |
| Model No Designator (*) | MOC*-BV-IN*-OUT* |
BALL VALVE HIGH PRESSURE (BVHP)
| End Connections | TOD/ FPT/ MPT |
|---|---|
| Tube OD Size (TOD) | From 1/4” OD to 1” OD (Fractional) From 6mm OD to 25mm OD (Metric) |
| Pipe Thread Size (MPT/ FPT) | 1/8” to 1” NPT (Taper) Threads (BSPP/ BSPT/ ISO/ Metric or any other types upon request) |
| Locking Arrangement | |
| Packing | PTFE (Optional PEEK) |
| Test Pressure | Up to 10000 psi. |
| Seal Ring | |
| Gland Packing | |
| Type | |
| Male End Conn | |
| Female Swivel Conn | |
| MOC | SS316, 304/ Brass/ Alloy 400, 600, C276/ CS etc |
| Model No Designator (*) | MOC*-BVHP-IN*-OUT* |
BALL VALVE PANEL MOUNTING (BVPM)
| End Connections | TOD/ FPT/ MPT |
|---|---|
| Tube OD Size (TOD) | From 1/8” OD to 1” OD (Fractional) From 3mm OD to 25mm OD (Metric) |
| Pipe Thread Size (MPT/ FPT) | 1/8” to 1” NPT (Taper) Threads (BSPP/ BSPT/ ISO/ Metric or any other types upon request) |
| Locking Arrangement | |
| Packing | PTFE (Optional PEEK) |
| Test Pressure | Up to 10000 psi. |
| Seal Ring | |
| Gland Packing | |
| Type | |
| Male End Conn | |
| Female Swivel Conn | |
| MOC | SS316, 304/ Brass/ Alloy 400, 600, C276/ CS etc |
| Model No Designator (*) | MOC*-BVPM-IN*-OUT* |
THREE WAY BALL VALVE (3BVPM)
| End Connections | TOD/ FPT/ MPT |
|---|---|
| Tube OD Size (TOD) | From 1/8” OD to 1” OD (Fractional) From 3mm OD to 25mm OD (Metric) |
| Pipe Thread Size (MPT/ FPT) | 1/8” to 1” NPT (Taper) Threads (BSPP/ BSPT/ ISO/ Metric or any other types upon request) |
| Locking Arrangement | |
| Packing | PTFE (Optional PEEK) |
| Test Pressure | Up to 10000 psi. |
| Seal Ring | |
| Gland Packing | |
| Type | |
| Male End Conn | |
| Female Swivel Conn | |
| MOC | SS316, 304/ Brass/ Alloy 400, 600, C276/ CS etc |
| Model No Designator (*) | MOC*-3BVPM-IN*-OUT1*-OUT2* |
MULTI WAY BALL VALVE (MBV)
| End Connections | TOD/ FPT/ MPT |
|---|---|
| Tube OD Size (TOD) | From 1/8” OD to 1” OD (Fractional) From 3mm OD to 25mm OD (Metric) |
| Pipe Thread Size (MPT/ FPT) | 1/8” to 1” NPT (Taper) Threads (BSPP/ BSPT/ ISO/ Metric or any other types upon request) |
| Locking Arrangement | |
| Packing | PTFE |
| Test Pressure | Up to 3000 psi. |
| Seal Ring | |
| Gland Packing | |
| Type | |
| Male End Conn | |
| Female Swivel Conn | |
| MOC | SS316, 304/ Brass/ Alloy 400, 600, C276/ CS etc |
| Model No Designator (*) | MOC*-MBV-IN*-OUT* |
NON-RETURN VALVE (NRV)
| End Connections | TOD/ FPT/ MPT |
|---|---|
| Tube OD Size (TOD) | From 1/8” OD to 2” OD (Fractional) From 3mm OD to 38mm OD (Metric) |
| Pipe Thread Size (MPT/ FPT) | 1/8” to 2” NPT (Taper) Threads (BSPP/ BSPT/ ISO/ Metric or any other types upon request) |
| Locking Arrangement | |
| Packing | |
| Test Pressure | Up to 10000 psi |
| Seal Ring | Viton/ Neoprene/ Silicon |
| Gland Packing | |
| Type | |
| Male End Conn | |
| Female Swivel Conn | |
| MOC | SS316, 304/ Brass/ Alloy 400, 600, C276/ CS etc |
| Model No Designator (*) | MOC*-NRV-IN*-OUT* |
PRESSURE RELIEF VALVE (PRV)
| End Connections | TOD/ FPT/ MPT |
|---|---|
| Tube OD Size (TOD) | From 1/4” OD to 1” OD (Fractional) From 6mm OD to 25mm OD (Metric) |
| Pipe Thread Size (MPT/ FPT) | 1/8” to 1” NPT (Taper) Threads (BSPP/ BSPT/ ISO/ Metric or any other types upon request) |
| Locking Arrangement | |
| Packing | |
| Test Pressure | As per Specification |
| Seal Ring | Viton/ Neoprene/ Silicon |
| Gland Packing | |
| Type | |
| Male End Conn | |
| Female Swivel Conn | |
| MOC | SS316, 304/ Brass/ Alloy 400, 600, C276/ CS etc |
| Model No Designator (*) | MOC*-PRV-IN*-OUT* |

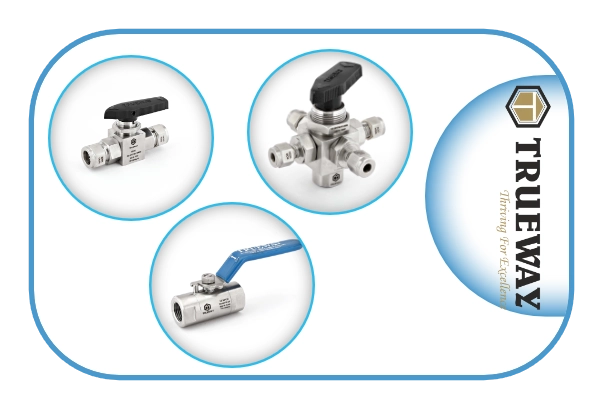

Benefits of Using TRUEWAY Instrumentation Valves & Fittings
- The configurations are modular. We can provide tailored solutions to fit complex piping layouts.
- Our solutions can handle high pressure as well as corrosive fluids.
- Safety is always our first priority. Eventually, our products are built to safeguard your process and your people.
- Valves act efficiently in the most demanding environments. Durability is certainly an advantage.
Applications of Instrumentation Valves & Fittings
Products by Trueway India find application in:
Trueway: India’s Trusted Instrumentation Valves & Fittings Supplier and Exporter
From Mumbai to the markets worldwide, the brand name Trueway has become synonymous with great quality, consistent excellence, timely delivery and above all, global-standard engineering. We have been the silent force behind efficient and uninterrupted operations in various critical industries; and we are proud to be the same.
Contact the best instrumentation valve manufacturers in India.
FAQs
Well, they are small but essential parts. They help manage the flow of liquids and gases in technical setups. Trueway India manufactures these components for leak-proof and accurate connections; and certainly, safety is an integral part of the same. Even a small error can cause big issues in industrial units.As instrumentation valves manufacturers, we take responsibility to ensure uninterrupted, efficient and safer operations.
Because we simply do more than just make valves – we engineer reliable solutions for your industrial settings, with 20+ years of hands-on experience. We are trusted by top industries. Our valves are tested and trusted where performance and safety matters a lot.
The industrial environments where safety and precision are paramount:
- Oil Refineries
- Oil & Gas Facility (Onshore & Offshore Refinery)
- Chemical Manufacturing Plants
- Petrochemicals Plants
- Water and Wastewater Treatment Systems
- Power Generation Units
- Steel and Fertilizer Industries
Well, it certainly depends on the job. We, as instrumentation valves & fittings manufacturers in India, use materials and metals such as Stainless Steel, Inconel, Monel, Hastelloy, Brass, PTFE, Carbon Steel, etc. Each material or metal is chosen based on where and how it will be used in your industrial environment.
We offer:
- NEEDLE VALVE (NV)
- NEEDLE VALVE TUBE (NV)
- NEEDLE VALVE ANGLE (NVA)
- NEEDLE VALVE WITH DRAIN (NVD)
- NEEDLE VALVE LOCKABLE (NVL)
- BALL VALVE (BV)
- BALL VALVE HIGH PRESSURE (BVHP)
- BALL VALVE PANEL MOUNTING (BVPM)
- THREE WAY BALL VALVE (3BVPM)
- MULTI WAY BALL VALVE (MBV)
- NON-RETURN VALVE (NRV)
- PRESSURE RELIEF VALVE (PRV)
Yes. In fact, customization is our strong suit. Be it pressure rating, size or a special material requirement, Trueway India specializes in building valves and fittings exactly how your system needs them. Reach out to the team of the best Valves Fittings Manufacturers Suppliers.
Yes. Always. Every single part is pressure tested at our well-equipped facility before it is dispatched. Trueway India follows global standards like MSS-SP-00-2016A. You can rely on what you receive. The sizes of our products vary based on use.
