About Us - Best Air Headers Suppliers in India
Trueway India manufactures air headers and designs solutions that bring industrial systems to life. Decades of experience and a skilled team have helped us to be among the reputable air header manufacturers in India guaranteeing dependability, accuracy and efficiency in many industries.

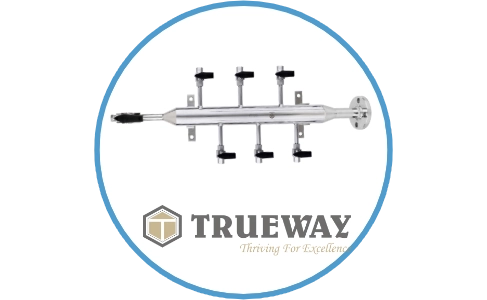

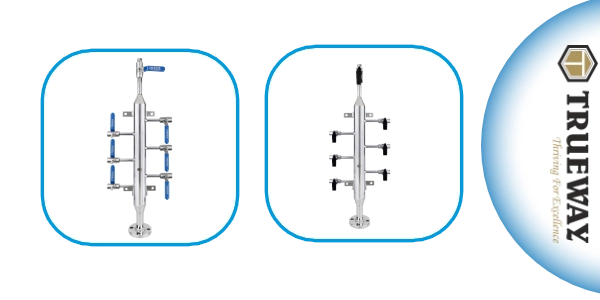

What is an Air Header?
An air header is a central hub for Compressed Air Distribution within a plant. There is a single source of compressed air, which is distributed to multiple locations by this product. You can consider it as your plant’s circulatory system ensuring every instrument gets the air it needs to work best. Crafted using various sizes of pipes, flanges, reducers and nipples as per specific design requirements, it is meticulously assembled with TRUEWAY-made Needle or Ball Valves to ensure seamless airflow regulation. Reach out to our team, the top manufacturers of air headers to dive deeper into details.

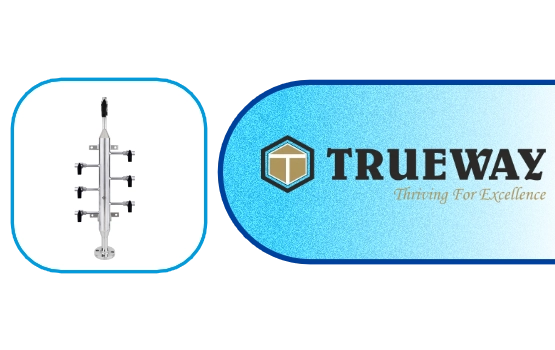

Types of Air Headers We Manufacture
Here, you can find a diverse range of air headers. They can be tailored to fit different types of industrial needs. 4-Way Air Headers are perfect for small systems that need distribution to four places. On the other hand, 6-Way Air Headers are appropriate for medium-scale enterprises with six distribution sites. Moreover, 8-Way to 20-Way Air Headers are made for large systems that need several air distribution channels. Trueway India, Air Headers exports company, also offers custom solutions depending on your particular operation requirements.
Sizes of Air Headers / Air Distribution Manifolds
Technical Specification
| End Connections | Tube OD/ Female Pipe Threads/ Male Pipe Threads |
|---|---|
| TEST PRESSURE | Standard 300 psi (High Pressure Test offered) |
| TO DISTRIBUTE COMPRESSED AIR | |
| TUBE OD SIZE | Tube OD from 1/4” OD to 1” OD (Fractional) From 6mm OD to 25mm OD (Metric) |
| PIPE THREAD SIZE | 1/8” to 2” Threads (NPT/ BSPP/ BSPT/ ISO/ Metric) |
| HEADER PIPE SIZE | From 1” to 4” (Seamless or ERW) Pipe |
| THICKNESS | As per Spec such as Sch.40/ Sch.80/ Sch.160/ C Class |
| INLET | A) RF/ FF Flange (ANSI B 16.5) ½” to 3” or B) With Threaded Ball Valve of Size ¼” to 2” or C) With Flange & Threaded Ball Valve Both or D) With Flanged Ball Valve E) With Three Piece Union |
| OUTLET/ DRAIN |
A) Needle Valves (CS/ Brass/ SS304/ SS316 etc.) B) Ball Valves (CS/ Brass/ SS304/ SS316 etc.) C) Pipe Male/ Female Open Threads |
| OPPOSITE SIDES OUTLET | Parallel or Zig- Zag. Distance between Two outlets to be specified. |
| PATTERN | Outlet Nipple Length to be specified. |
| Mounting | Mounting Plates/ Brackets/ U Clamps |
| TAG PLATES | Header Tag Plates & Instrument Tag Plates arrangement along with Laser Marked SS Tag Plates upon request. |
Why Use Air Headers Manifolds?
Air distribution
Efficient air distribution or the uniform delivery of compressed air to all of the instruments in the system .
Space utilization
Optimal use of space by lowering the requirement for several pipelines.
Enhanced safety
Better security as it reduces exposure to possible dangers and leaks.
Easy maintenance
With centralized control, system checks as well as repairs are made easier, paving the way for simplified maintenance.

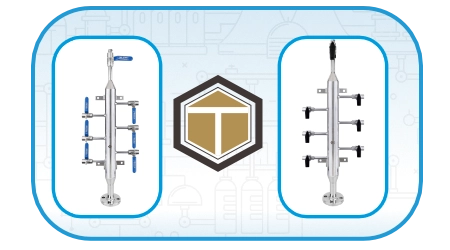

Benefits of Air Headers Manifolds
- Modifiable design: Our products can be adapted to differing plant configurations and specifications.
- Quality components: They deliver long-lasting performance without leaks.
- Factory tested: Every unit goes through extensive testing to ensure dependability.
- Versatility: Air headers are used for diverse purposes.
Applications of Air Headers
Global Reach of Trueway India’s Air Headers Manifolds
Trueway India leads the way globally. Our global clientele trusts us because of our dedication to quality and timely delivery. All the way from placing an order to receiving it, the team keeps quality, consistent and in line with international standards, to ensure a smooth transaction. Contact us for the streamlined Air Header exports in India!
Contact the best instrumentation valve manufacturers in India.
FAQs's
The purpose of an air header, which is a type of manifold system, is to channel compressed air, from one inlet to numerous exits. It ensures that all the machines as well as tools in an industrial setting get enough air to work properly. For more details, get in touch with Trueway India – the top-notch Air Headers Manufacturers .
Well, there are many benefits of using air headers to centralize the delivery of compressed air:
- Reducing the complexity of piping systems
- Limiting potential leak spots
- Improving overall system efficiency as well as safety
They can be utilized across various industries such as:
- Oil & Gas
- Pharmaceuticals
- Fertilizers
- Power & Energy
- Chemical & Petrochemicals
- Water Treatment
- Engineering & EPCs
Trueway Air Headers are manufactured using various sizes of pipes, flanges, reducers, and nipples as per specific design requirements. They are meticulously assembled with TRUEWAY-made Needle or Ball Valvesto regulate the airflow seamlessly
Being a trusted air headers supplier,we manufacture air headers using high-quality materials like Stainless Steel 304/ 304L/ 316/ 316L, and Carbon Steel (Zinc Plated/ Galvanized).
The material selection will depend on the actual requirements and environmental conditions of an application.
- 2-Way, 4-Way, 6-Way and up to 24-Way configurations.
- Custom-designed headers for your specifications.
- Different inlet and outlet options to suit various system designs.
All air headers are tested for quality and performance. They are designed to deliver reliable performance under operational conditions.
This is the process you need to follow:
- Mounting: securing air header in the desired location using mounting Plate/ U Clamp.
- Joining the inlet: connecting compressed air supply to the inlet
- Connecting outlets: connecting outlet ports to the respective instruments using tubing.
- Testing: checking for leaks or appropriate system by means of a pressure test.
- Customized solutions
- Quality assurance
- Expertise
- Customer support
- Global reach
For efficient air distribution solutions, trust only the experts, Trueway Air Header manufacturers in India!
