Welcome to Trueway India: Instrument Hardware Manufacturers
Trueway is your trusted destination for high-quality instrument erection hardware products in India. As one of the leading instrument hardware manufacturers, we offer a comprehensive range of precision components. Each product is engineered for efficient use in liquid, gas and vacuum applications across diverse industries. We are committed to excellence and innovation; in fact, these two aspects have made us a preferred partner for instrumentation across India and beyond.

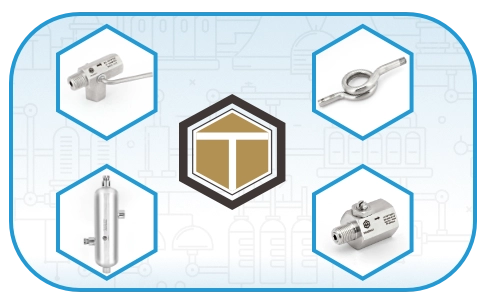

About Us – Leading Instrument Hardware Company in India
At Trueway, an instrument hardware supplier in India, we are more than just manufacturers. Trueway is a solution provider for all your instrumentation hardware needs. We produce products that are dependable, adaptable and durable. They are up to par with global standards due to our in-house capabilities combined with our thorough knowledge of industry demands. Syphons, Snubbers, Condensate Pots, Quick Release Couplings, Gauge Cocks, and Flanges are some of the products we provide. Each one has been manufactured carefully by our skilled and knowledgeable team.

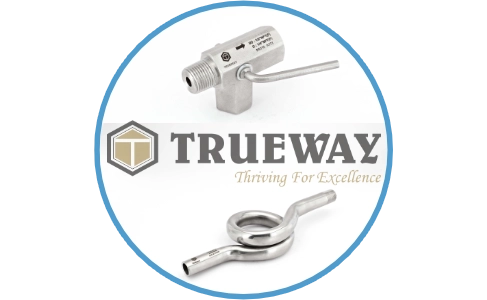

What is Instrumentation Hardware?
The term instrumentation hardware means the mechanical and supporting components that allow for the proper installation, protection and operation of instruments used for process measurement as well as control. These parts are very important for conveying pressure. They safeguard sensitive machinery and keep the system together in different environments.
Common Instrument Hardware Components Include
Condensate / Seal Pots (CP)
| End Connections | FPT/ SW |
|---|---|
| Pipe Size | 1.5” to 4”. Sch.40 to Sch. XXS |
| MALE END CONN | |
| FEMALE SWIVEL CONN | |
| Pipe Thread End Conn (FPT) | 1/4” to 2” NPT (Up to 9000 psi) (BSPP/ BSPT/ ISO/ Metric or any other types upon request) |
| Drain Plugs |
Hex plugs provided optionally Length of Pipe/ Pipe Schedule to be specified. |
| Socket Weld Pipe Size (SW) | 1/4” to 2” NB (up to 9000 psi) |
| Type | 3 Way/ 4 Way. IBR Certificate Optional |
| MOC | SS316, 304/ Alloy 400, 600, C276/ CS/ AS etc. |
| TEST PRESSURE | |
| TUBE OD SIZE (TOD) | |
| PIPE THREAD SIZE (MPT/ FPT) | |
| MODEL NO DESIGNATOR (*) | |
| SPECIAL FLANGES | |
| FACE TYPE | |
| CLASS | |
| SPECIFICATION | |
| PTFE Needle Valves | |
| PTFE Manifold Valves | |
| PTFE Pipe Fittings | |
| PTFE Pipe Fittings | |
| PTFE Pipe Fittings | |
Syphons (SY)
| End Connections | MPT/ FPT/ SW/ PLAIN |
|---|---|
| Pipe Size | Up to ½” ( Sch.40 to Sch. XXS) |
| MALE END CONN | |
| FEMALE SWIVEL CONN | |
| Pipe Thread End Conn (FPT) | 1/4” to ½” NPT (Up to 9000 psi)(BSPP/ BSPT/ ISO/ Metric or any other types upon request) |
| Drain Plugs | |
| Socket Weld Pipe Size (SW) | 1/4” to 1/2” NB (up to 9000 psi) |
| Type | U Type, Q Type |
| MOC | SS316, 304/ CS/ AS etc |
| TEST PRESSURE | |
| TUBE OD SIZE (TOD) | |
| PIPE THREAD SIZE (MPT/ FPT) | |
| MODEL NO DESIGNATOR (*) | |
| SPECIAL FLANGES | |
| FACE TYPE | |
| CLASS | |
| SPECIFICATION | |
| PTFE Needle Valves | |
| PTFE Manifold Valves | |
| PTFE Pipe Fittings | |
| PTFE Pipe Fittings | |
| PTFE Pipe Fittings | |
Snubbers (SNB)
| End Connections | MPT/ FPT |
|---|---|
| Pipe Size | |
| MALE END CONN | |
| FEMALE SWIVEL CONN | |
| Pipe Thread End Conn (FPT) | 1/8” to 1/2” NPT (Taper) Threads (BSPP/ BSPT/ ISO/ Metric or any other types upon request) |
| Drain Plugs | |
| Socket Weld Pipe Size (SW) | |
| Type | Hexagonal. All combinations available |
| MOC | SS316, 304/ Brass/ Alloy 400, 600, C276/ CS etc |
| TEST PRESSURE | Up to 6000 psi |
| TUBE OD SIZE (TOD) | |
| PIPE THREAD SIZE (MPT/ FPT) | |
| MODEL NO DESIGNATOR (*) | MOC*-SNB-INLET*-OUTLET* |
| SPECIAL FLANGES | |
| FACE TYPE | |
| CLASS | |
| SPECIFICATION | |
| PTFE Needle Valves | |
| PTFE Manifold Valves | |
| PTFE Pipe Fittings | |
| PTFE Pipe Fittings | |
| PTFE Pipe Fittings | |
Flanges
| End Connections | |
|---|---|
| Pipe Size | |
| MALE END CONN | |
| FEMALE SWIVEL CONN | |
| Pipe Thread End Conn (FPT) | |
| Drain Plugs | |
| Socket Weld Pipe Size (SW) | |
| Type | Socket Weld, Slip On, Weld Neck, Blind, Screwed |
| MOC | SS316, 304/ Alloy 400, 600, C276/ CS/ AS etc. |
| TEST PRESSURE | |
| TUBE OD SIZE (TOD) | |
| PIPE THREAD SIZE (MPT/ FPT) | |
| MODEL NO DESIGNATOR (*) | |
| SPECIAL FLANGES | Half Coupling of Reducing Size Welded at Centre |
| FACE TYPE | RF/ FF/ Tongue & Groove Type |
| CLASS | 150 to 2500 # |
| SPECIFICATION | ANSI B 16.5 |
| PTFE Needle Valves | |
| PTFE Manifold Valves | |
| PTFE Pipe Fittings | |
| PTFE Pipe Fittings | |
| PTFE Pipe Fittings | |
Quick Release Couplings (QRC)
| End Connections | TOD/ FPT/ MPT |
|---|---|
| Pipe Size | |
| MALE END CONN | |
| FEMALE SWIVEL CONN | |
| Pipe Thread End Conn (FPT) | |
| Drain Plugs | |
| Socket Weld Pipe Size (SW) | |
| Type | Single Check Type/ Double Check Type |
| MOC | SS316, 304/ Brass/ Alloy 400, 600, C276/ CS etc |
| TEST PRESSURE | |
| TUBE OD SIZE (TOD) | From 1/4” OD to 1” OD (Fractional) From 6mm OD to 25mm OD (Metric) |
| PIPE THREAD SIZE (MPT/ FPT) | 1/8” to 1” NPT (Taper) Threads (BSPP/ BSPT/ ISO/ Metric or any other types upon request) |
| MODEL NO DESIGNATOR (*) | MOC*-QRC-IN*-OUT* |
| SPECIAL FLANGES | |
| FACE TYPE | |
| CLASS | |
| SPECIFICATION | |
| PTFE Needle Valves | |
| PTFE Manifold Valves | |
| PTFE Pipe Fittings | |
| PTFE Pipe Fittings | |
| PTFE Pipe Fittings | |
Swivel Adaptors (SWA)
| Used For Fixing Position of Component (Pressure Gauge/ Valve etc) without Rotating Component itself. | |
|---|---|
| End Connections | |
| Pipe Size | |
| MALE END CONN | 1/8” to 1” NPT (Taper) Threads(BSPP/ BSPT/ ISO/ Metric or any other Types Upon Request) |
| FEMALE SWIVEL CONN | Parallel Threads (BSPP/ ISO/ Metric/NPS etc)Type: Sealing with Rubber O-ring (Viton/ Neoprene/ Silicon) |
| Pipe Thread End Conn (FPT) | |
| Drain Plugs | |
| Socket Weld Pipe Size (SW) | |
| Type | Sealing with Rubber O-ring (Viton/ Neoprene/ Silicon) |
| MOC | SS316, 304/ Brass/ Alloy 400, 600, C276/ CS etc |
| TEST PRESSURE | |
| TUBE OD SIZE (TOD) | |
| PIPE THREAD SIZE (MPT/ FPT) | |
| MODEL NO DESIGNATOR (*) | MOC*-SWA-MPT*FPT* |
| SPECIAL FLANGES | |
| FACE TYPE | |
| CLASS | |
| SPECIFICATION | |
| PTFE Needle Valves | |
| PTFE Manifold Valves | |
| PTFE Pipe Fittings | |
| PTFE Pipe Fittings | |
| PTFE Pipe Fittings | |
Gauge Cocks (GC)
| End Connections | |
|---|---|
| Pipe Size | |
| MALE END CONN | |
| FEMALE SWIVEL CONN | |
| Pipe Thread End Conn (FPT) | |
| Drain Plugs | |
| Socket Weld Pipe Size (SW) | |
| Type | 2 Way or 3 Wa | Hexagonal. All combinations available |
| MOC | SS316, 304/ Brass/ Alloy 400, 600, C276/ CS etc |
| TEST PRESSURE | |
| TUBE OD SIZE (TOD) | |
| PIPE THREAD SIZE (MPT/ FPT) | 1/8” to 1” NPT (Taper) Threads (BSPP/ BSPT/ ISO/ Metric or any other types upon request) |
| MODEL NO DESIGNATOR (*) | MOC*-SWA-MPT*FPT* |
| SPECIAL FLANGES | |
| FACE TYPE | |
| CLASS | |
| SPECIFICATION | |
| PTFE Needle Valves | |
| PTFE Manifold Valves | |
| PTFE Pipe Fittings | |
| PTFE Pipe Fittings | |
| PTFE Pipe Fittings | |

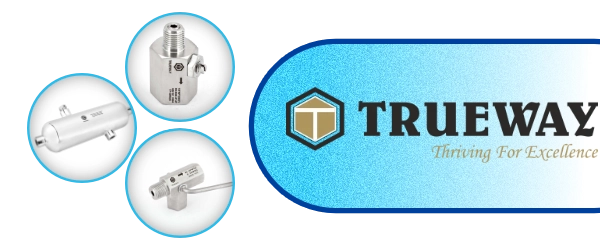

Why Choose Trueway Instruments as Your Instrument Hardware Company in India?
- Being instrument hardware manufacturers in India, we have a complete range of products under one roof
- Our products are suitable for liquids, gases and vacuum systems
- Our manufacturing is of global quality standards
- We offer custom-made solutions for project-specific needs
- Ours is precision craftsmanship combined with rigorous quality checks
- Benefit from reliable delivery timelines and expert support
Industries We Serve
Why Instrument Hardware Matters?
Instrumentation hardware is crucial because it offers many benefits:
- Safe and efficient operation of instruments
- Maintaining pressure and temperature integrity
- Supporting longevity of critical equipment
- Providing flexibility and adaptability in design
- Helping avoid downtime and system failures as well
Our Global Reach
As an instrumentation hardware company, we have a strong presence in India; we have been expanding market overseas as well. Trueway instruments are trusted by customers in the Middle East, Southeast Asia, Africa, Europe and North America. All our export-ready products comply with international quality benchmarks.
Contact the best instrumentation valve manufacturers in India.
Contact the Best Instrumentation Hardware Manufacturer in India – Trueway
FAQ's
When it comes to measuring instruments and control systems, instrument hardware includes all crucial parts utilized in different sectors. Instruments that can measure and regulate processes like pressure, flow, temperature, etc. can be installed, connected and protected using these components. Parts like manifolds, fittings, connectors, clamps, etc. are integral parts of instrument hardware. They are crucial to the precision, security and dependability of the whole system in your industrial setting. For more details, connect with the team Trueway, your trusted instrument hardware company.
The secure mounting, alignment and connection of all measuring instruments depend on the quality of instrument hardware. A minor measurement mistake could cause hazardous situations including system breakdowns, safety concerns and defective products in sectors like chemical, oil and gas, manufacturing, etc. The high-quality instrument hardware can help avoid performance-degrading issues like misalignments, leaks, etc; saving you time and money. It also simplifies maintenance. Choose the best instrument hardware manufacturers for your critical industrial operations.
- CONDENSATE/ SEAL POT (CP)
- SYPHON (SY)
- SNUBBER (SNB)
- FLANGES
- PTFE TUBING/ FITTINGS/ VALVES
- QUICK RELEASE COUPLING (QRC)
- SWIVEL ADAPTOR (SWA)
- GAUGE COCKS (GC)
- TUBE FITTINGS
- PIPE FITTINGS
- MANIFOLDS AND VALVES
Trueway instrument and hardware supplier in India only uses quality materials, suitable for your industrial environments:
- Stainless steel
- Brass and copper
- Carbon Steel
- High Nickel Alloys
- Instrumentation
- Chemicals
- Oil & Gas
- Hydraulics
- Power
- Steel
- Fertilizers
- Petrochemicals
- Pharmaceuticals
- Paint
Consider these factors:
- Type of application (pressure, flow, temperature?)
- Environment (corrosive, high-temperature or exposed to vibration?)
- Material compatibility
- Size and design
- Mounting method
All the products by instrument and hardware manufacturers in India Trueway undergo strict quality checks before they are delivered. Our quality control process includes:
- Material inspection as well as traceability
- Dimensional accuracy checks
- Surface finish inspection
- Pressure and leak testing
Here is what makes us different as an instrument hardware company:
- A complete range of instrument hardware
- Products engineered for safety and durability
- Custom-made solutions
- Experience in working with complex industrial systems
- Fast delivery
- Technical support
