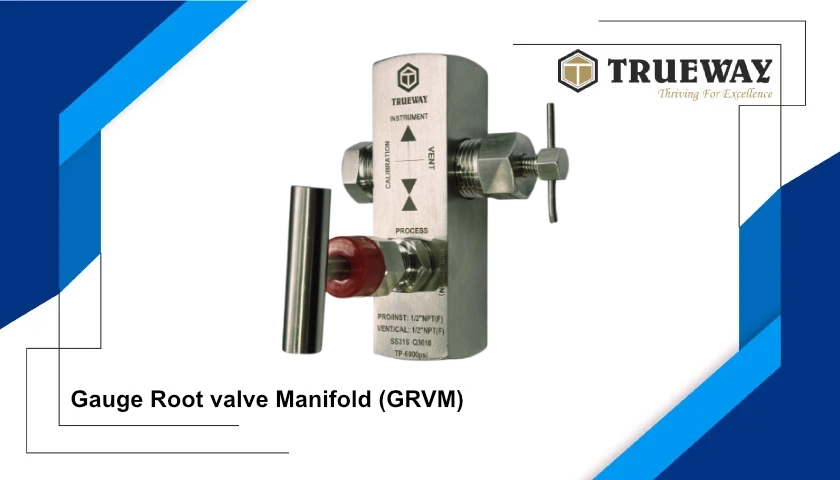

Gauge Root Valve Manifold (GRVM)

Features

High pressure leakproof regulation.

In position vent & also calibration of the Instrument can be done.

Suitable for high pressure gases, liquid & Vacuums.

100% factory tested for guaranteed performance

When Used

TRUEWAY Gauge Root Valves Manifolds which, it is used for high pressure with relatively low flow rates mostly used for pressure gauges with one valve to Start, Stop & regulate inlet/ outlet port, a bleed valve to control outlet/ drain ports & an additional port for calibration of the Instrument in position.

Technical Specification

End Connections Inlet (Process), Outlet (Instrument), Calibration port (With Blind Plug) & Drain (With Bleed Valve) with Male or Female pipe thread
PIPE THREAD SIZE 1/4” to 1” NPT (Taper) Threads (BSPP/ BSPT/ ISO/ Metric or any other types upon request)
TEST PRESSURE Up to 10000 psi.
PACKING PTFE (Grafoil for high temp)
TYPE Needle Valve Type isolation Valve
MOC SS316/ 316L, 304/ 304L, Alloy 400, 600, C276 etc
MODEL NO DESIGNATOR (*) MOC*-GRVM-IN*-OUT*-VENT*-CAL*

Inquiry For Gauge Root Valve Manifold Product


Description

Gauge Root Valves are Manifolds which can be used for Mounting of Pressure Transmitters/ Gauges with Process Connection. These are simple isolation valves with additional facility to in position vent the instrument & also to calibrate the Instrument with additional port provided.

Industries

Instrumentation

Chemicals

Oil & Gas

Hydraulics

Power

Steel

Fertilizers

Petrochemicals

Pharmaceuticals
