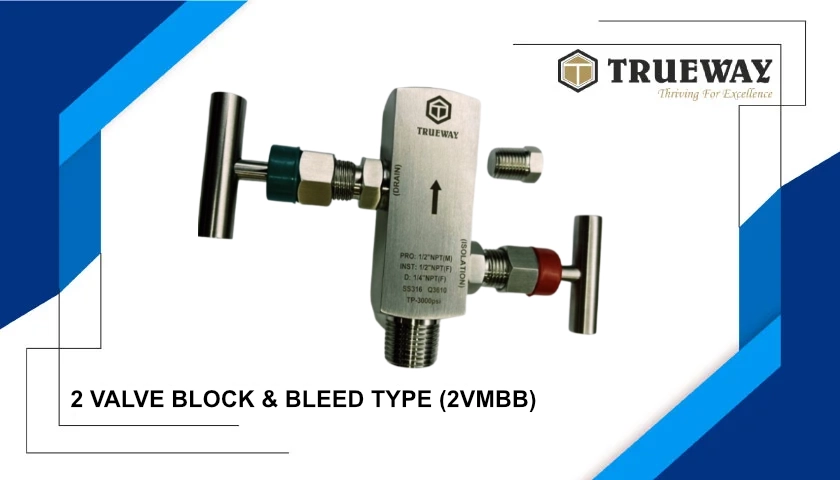

2 VALVE BLOCK & BLEED TYPE (2VMBB)

Features

High pressure leakproof regulation.

Suitable for high pressure gases, liquid & Vacuums.

100% factory tested for guaranteed performance

When Used

TRUEWAY 2 Valve Block & Bleed manifold is used for high pressure with relatively low flow rates mostly used for pressure gauges/ transmitters, with one valve to Start, Stop & regulate inlet/ outlet port and second valve to control outlet/ drain ports.

Technical Specification

End Connections Inlet (Process), Outlet (Instrument) & Drain Male pipe thread and Female pipe thread
PIPE THREAD SIZE 1/4” to 1” NPT (Taper) Threads (BSPP/ BSPT/ ISO/ Metric or any other types upon request)
TEST PRESSURE Up to 10000 psi.
PACKING PTFE (Grafoil for high temp)
TYPE Needle Valve Block & Bleed Type
MOC SS316/ 316L, 304/ 304L, Alloy 400, 600, C276/ PTFE etc
MODEL NO DESIGNATOR (*) MOC*-2VMBB-IN*-OUT*-DRAIN*

Inquiry For 2 VALVE BLOCK & BLEED TYPE (2VMBB) Product


Description

Block & Bleed Valves are Two Valve Manifolds which can be used for mounting pressure Gauges/ Transmitters with Process Connection. These are simple isolation valves with additional facility to drain the Instrument in position. It has one process, one Instrument & one Drain Connection. While Isolation is controlled with an Isolation Valve, drain of Instrument is controlled with a Drain Valve.

Industries

Instrumentation

Chemicals

Oil & Gas

Hydraulics

Power

Steel

Fertilizers

Petrochemicals

Pharmaceuticals
